Flexible PCB

What is a Flexible PCB?

A Flexible PCB (also called flex PCB or FPC) is a type of printed circuit board that can bend, fold, and twist without breaking. Unlike rigid boards, flexible PCBs are designed to adapt to tight spaces and dynamic environments, making them ideal for compact and lightweight electronic devices.

How Flexible PCBs Differ from Rigid PCBs

Rigid PCBs are built on FR4 substrates, which makes them stiff and less adaptable to tight spaces. Flexible PCBs, in contrast, use polyimide substrates that allow the board to bend and twist without damage. Conductive copper layers carry signals across the base material, while protective coverlays or conformal coatings ensure durability. Thanks to this flexibility, FPCs save space, withstand vibration better, and enable 3D packaging solutions that rigid boards simply cannot achieve.

Structure and Properties of FR4

The structure of a Flexible PCB is built on thin, bendable substrates such as polyimide (PI) or PET, which provide excellent mechanical flexibility and heat resistance. Copper foil is laminated onto the substrate to form the conductive traces, while coverlays or solder masks protect the circuits. Depending on the application, stiffeners can be added in certain areas to strengthen connectors or mounting points without affecting the overall flexibility.



Flexible PCBs combine mechanical adaptability with electrical reliability. They can be bent, folded, or twisted to fit into compact or irregularly shaped devices, all while maintaining stable electrical performance.

Key properties include:

High Flexibility – withstands repeated bending without damage.

Lightweight and Thin – saves space and reduces overall device weight.

Durability – resistant to vibration, thermal stress, and dynamic movement.

Design Versatility – supports complex layouts with fewer connectors and cables.

Advantages of Flexible PCBs

Space and Weight Savings

Flexible PCBs are very thin and lightweight. They reduce the need for bulky wires in a system where space is a constraint. And because of this flexibility, we can design compact devices.

Durability and Flexibility in Harsh Environments

Flexible PCBs come with superior bend endurance. They enhance the overall bending ratio and bending frequency. Due to their good thermal stability, FPCs perform well in applications exposed to mechanical stress and vibrations.

Improved Signal Integrity

Thickness is reduced, which means less spacing between layers and shorter ground return paths. This will reduce the overall crosstalk and improve signal integrity in high-speed designs.

Benefits of FR4 PCB Material

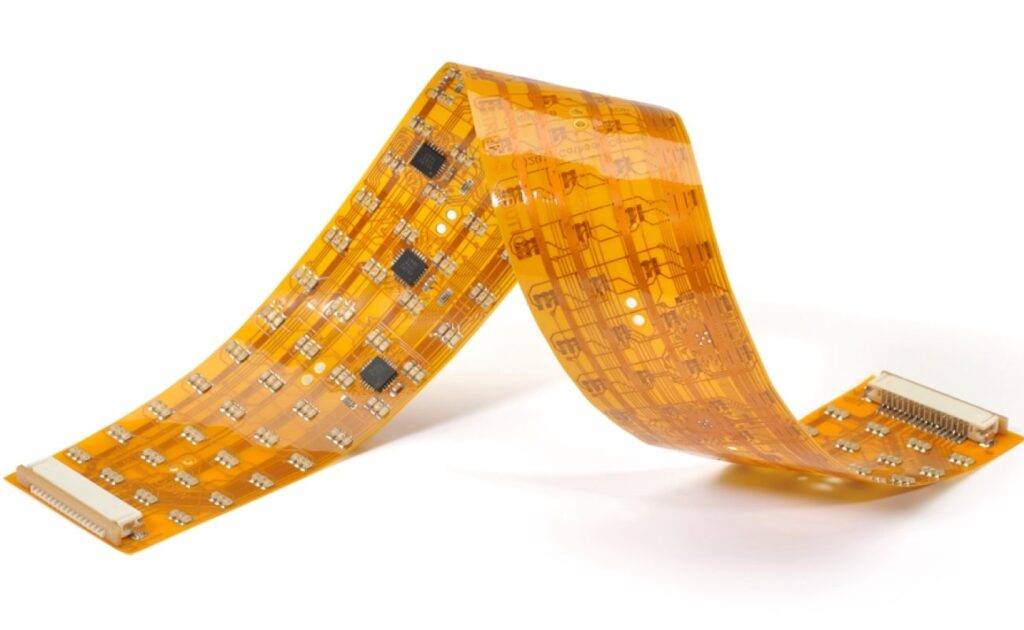

FLEXIBLE PRINTED CIRCUIT BOARDS

1. Bend Radius and Layer Count

The minimum bend radius defines how tightly a flexible PCB can be bent without causing cracks or delamination. This parameter depends on both the layer count and material type. In general, more layers reduce flexibility, so designs requiring frequent bending should minimize layer count.

Polyimide (PI) is the most commonly used material thanks to its excellent thermal resistance and mechanical durability. Its ability to withstand high temperatures makes soldering components reliable and secure.



Polyester (PET) is a cost-effective alternative, suitable for low-cost or disposable devices. However, it has limited heat resistance and is not ideal for applications requiring repeated soldering.

To ensure mechanical reliability, designers often use curved traces, staggered vias, and teardrop pads. These techniques help reduce stress concentration points, preventing cracks and enhancing long-term durability.

Common Applications of FR4 PCBs

1. Consumer Electronics

Flexible PCBs are widely used in smartphones, wearables, and laptops to save space and enable ultra-slim designs. By allowing components to connect within tighter spaces, FPCs make compact and lightweight devices possible.

In medical technology, weight and reliability are critical. FPCs are commonly used in pacemakers, hearing aids, and diagnostic equipment. Their ability to bend and flex allows them to withstand natural body movements without compromising performance.

From electric vehicles to in-car audio systems, FPCs play a vital role. Unlike rigid boards that are prone to vibration damage, flexible PCBs can endure both heat and mechanical stress, making them ideal for sensors and control systems.

In aerospace and aviation, reducing weight is critical. FPCs are used in satellites, avionics, and other flight systems because their lightweight design helps lower launch costs and improve fuel efficiency without sacrificing reliability.

JKRGLO Flexible PCB Manufacturing Capabilities

Features Capabilities
Minimum Dimensions No limit. Panel suggested if dimension < 20×20mm.
Maximum Dimensions Regular: 234 × 490mm
Absolute limit: 250 × 600mm with edge rails
Dimension Tolerance ±0.1mm/±0.05mm(extra charged)
Coverlay Color Yellow / Black / White/ Transparant
Surface Finish ENIG. Thickness: 1u" / 2u"
Min. Via hole size/diameter ①Regular: 0.15mm/0.35mm
②Extreme: 0.10mm/0.3mm (extra charged)
Minimum Plated Slot 0.50 mm
Minimum Non-Plated Slot No limit
Annular Ring for PTH ≥ 0.25 mm. Absolute limit: 0.18mm
Minimum Trace Width/Spacing ① 12μm (1/3oz) copper: 3/3mil (absolute limit 2/2mil)
② 18μm (0.5oz) copper: 3.5/3.5mil
③ 35μm (1oz) copper: 4/4mil
Stiffener Material PI(0.1mm, 0.15mm, 0.20mm, 0.225mm, 0.25mm)
FR4(0.1mm, 0.2mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm)
Stainless Steel(0.1mm, 0.2mm, 0.3mm)
3M Tape(tesa8854, 3M9077, 3M468)

Why is JKRGLO the Go-To Flexible PCB Manufacturer?

Flexible Material Choices

From ultra-thin 25μm substrates to tear-resistant 50μm, transparent PET (85% transmittance), and advanced 4-layer stackups, JKRGLO covers every design need.

Precision You Can Trust

With LDI exposure and dry film, JKRGLO delivers 2/2mil traces without pad deviation. Laser cutting enables virtually any shape with ±0.05mm tolerance.

Reliable Quality & Durability

Using adhesive-free substrates and offering multiple stiffener options, JKRGLO ensures excellent bending performance and long-lasting stability.

Cost-Effective & Fast

Affordable factory-direct pricing combined with dependable 4-5 day lead times, giving you the best balance of cost, speed, and reliability.

Submit a Flexible PCB Quote Now

Frequently Asked Questions About Flexible PCB

What materials are used in flexible PCBs?

Polyimide and polyester films are the most common substrates for flexible PCBs. They can be chosen on the basis of cost and thermal stability.

A well-designed flex PCB can withstand thousands to millions of flex cycles, depending on material and bend radius.

Typically, the bend radius will be around 10 times the thickness of the board for dynamic flexing and 6 times for static bends, though actual values depend on copper type, layer count, and material selection.

Yes, flexible PCBs are generally more expensive per unit than rigid boards due to materials and processing. However, they often lower the total system cost by reducing connectors, cables, assembly steps, and space requirements, and can be chosen for RF or microwave circuits.

Flexible PCBs are ideal when space savings, lightweight construction, or repeated bending are required. They are commonly used in compact devices, dynamic applications (like foldable electronics or hinges), and in systems where connectors and cables can be replaced to improve reliability and reduce assembly steps.

Flex PCBs are more costly to manufacture than rigid boards due to specialized materials and processes. They also require careful design to manage bend radius and stress points. Additionally, handling and assembly need more attention to avoid damage, as flexible circuits are thinner and more delicate than rigid ones.

A flex PCB can range from a simple single-layer design to complex multilayer structures, depending on the application. Typical builds include 1-4 layers, but advanced designs can reach 6-8 layers or more when combined with rigid-flex technology.
