PCB Layout Design
JKRGLO has served the global electronics industry for 14 years, providing one-stop electronic manufacturing services starting with PCB layout design.
PCB Layout Capabilities
Maximum number of layers
64
Maximum number of pins
150,000+
Maximum number of connections
120+
Minimum line width
3mil
Minimum line spacing
3mil
Minimum via hole
6mil (4mil for micro via do with laser)
Maximum number of BGAs
120+
Minimum BGA pitch
0.3mm
Maximum number of BGA pins
18865
Maximum Speed Signal
224G-PAM4
Chip and Module Solutions for Advanced PCB Layout
From Data Centers to Automotive Systems: Master Multi-Industry Processor, FPGA, Power, and Memory Design Strategies.
Data Center/Server Processors
Intel: Eagle Stream (Xeon D-2700), Purley Series (Ivy Bridge/Sandy Bridge), Sapphire Rapids (5G Core Networks)
AMD: EPYC SP3/SP5
Marvell: OCTEON 10 (DPU for 5G)
Networking/Communication Processors
Marvell: ARMADA1000/1500, 98DX125/8297
Cavium: CN Series (CN106XXX/CN9XXX/CN8XXX/CN7XXX)
Industrial Control Processors
TI: AM35X/38X/335X/437X, 66AK2EX/C667X
Freescale: MPC8541/8548/8555/8641, P2020
Mobile/Embedded Processors
Intel: Tiger Lake, Alder Lake, Raptor Lake, Lunar Lake
AMD: F73/F75/F76/FP7/FP8
Automotive Processors
High-Performance Computing FPGAs
AMD Xilinx: Virtex-7/UltraScale+, Kintex-UltraScale+, Versal ACAP
Intel: Stratix Series, Agilex 7
Military/Industrial-Grade FPGAs
Microsemi: PolarFire, IGLOO2, ProASIC3
Intel: MAX Series
Low-Power Embedded FPGAs
AMD Xilinx: Spartan-6/7, Artix-7
Lattice: Certus-NX, ECP5/ECP5-5G, MachXO3D
Multi-Channel Power Management ICs (PMICs)
TI: TPS54XXX/40XXX, LM51XXX/50XXX
Infineon: TDA38XXX, TLF35584
Renesas: ISL9130X Series
Automotive-Grade Power Chips
TI: BQ25XXX/24XXX
Infineon: TDM22545D
High-Density DC-DC Converters
MPS: MPM26XX/35XX, MPQ86XXX
Linear: LTM46XX/80XX
High-Speed Network Interfaces
Broadcom: BCM84793/8129/88370 (10G Ethernet)
Marvell: 88E6083/8070 (Gigabit Switch Chips)
High-Speed Serial Interfaces
PMC: PM5440/5990 (PCIe/SATA Protocol Conversion)
ClariPhy: Cl20010 (Optical Communication PHY)
Data Converters (ADC/DAC)
TI: ADS98XX/88XX, DAC38RFXX/JXX
ADI: AD99XX/98XX/97XX
High-Performance DRAM
Samsung/Hynix/Micron: DDR5, GDDR6/7
Industrial-Grade Storage
Micron: Industrial TF Cards
Low-Power Memory
Samsung/Hynix: LPDDR4/4X, LPDDR5/5X
Autonomous Driving Domain Controllers
Nvidia: Orin X
TI: TDA4VH-Q1
Black Sesame: A1000
Vehicle Body Control & Safety
Renesas: RH850/U2A
Infineon: TLF35584 (Safety PMIC)
Smart Cockpit Domain Controllers
Qualcomm: SA8540P
PCB Layout Capabilities

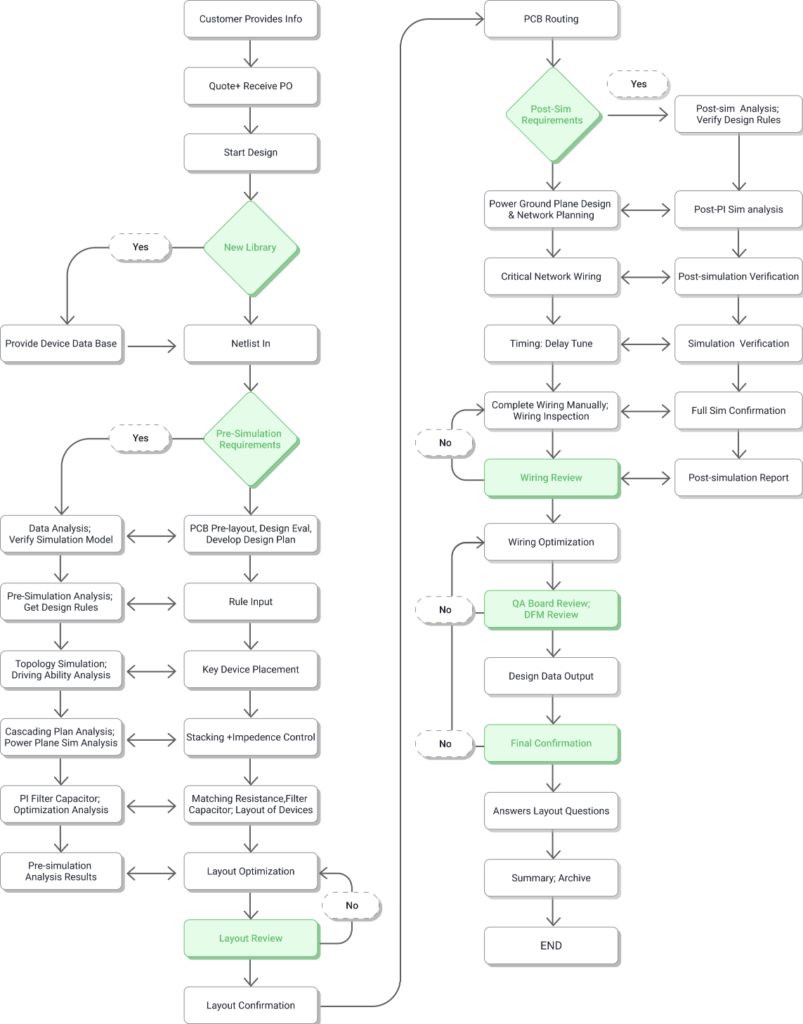

Layout Work Flow at JKRGLO
Online Order for Layout
Estimate Quotation
Placement Confirmation
Start Design
Board Review
Final Payment
Customer Input
Schematic/Netlist, Mechanical (DXF), Component Library (datasheets for new parts), Design Requirements.
Review Process
Layout/Routing reviewed against specs, guidelines, and checklists. Schematic DRC and mechanical checks performed. Issues reported via EQ.
Customer Confirmation
Layout/Mechanical files provided for approval of layout, stack-up, impedance, mechanics, packages, and routing parameters.
Output Delivery
Layout/Routing reviewed against specs, PCB source, Gerber, assembly, stencil, and mechanical files. Internal DFM, QA, and EMC checks precede client approval and file release.
PCB Layout Design Cycle
PCB board PIN number
Lead Time (working days)
1-1000 PIN
3-5 days
2000-3000 PIN
3-8 days
4000-5000 PIN
8-12 days
6000-7000 PIN
12-15 days
8000-9000 PIN
15-18 days
10000-12000 PIN
18-20 days
13000-15000 PIH
20-23 days
16000-19000 PIN
23-30 days
Note: The design cycle of the above PCB board PIN number is the regular delivery period. The accurate design cycle is based on the time when the customer provides complete information and the difficulty of the PCB board for comprehensive evaluation.
Submit a Layout Quote Now
Advantages of PCB Layout Service at JKRGLO
Prolific + Professional Engineers
- Significant Seniority: More than 20 years of Industry
- Experience.Efficient Design: Ordinary PCB layouts can be completed in minutes.
Excellence in Quality
- Self-inspection: Detailed checks on design aspects using a checklist.
- Expert Review: Senior experts assess design, manufacturability, testability, EMC, and thermal factors.
Quick-Turn Assembly Services
- Parallel Design: Reduces delivery time by 30-50%.
- In-House Production: Enables immediate manufacturing.
Expert & Secure Layout Solutions
- Software Compatibility: Proficient in Altium, PADs, OrCAD, EAGLE, and KiCAD.
- NDA Protection: Mandatory NDAs to safeguard customer innovations.
One Board Success
- Right the First Time: Streamlining PCB development, reducing R&D iterations.
- Rapid Market Entry: Seizing the First-Mover Advantage.
Cost Optimization
- Manufacturing Compatibility: Increased supplier flexibility, and reduced supply chain risk.
- Optimized for Scale: Design considerations for R&D and manufacturing.
Quality Assurance
Quality is our core value
We ensure excellence through self-checks, mutual inspections, expert reviews, and stringent standards.
Expert Guidance
Comprehensive ‘Design Guidelines’ and ‘Design Specifications’ offer additional technical recommendations beyond layout.
Mutual Inspection
Standardized peer reviews and thorough Design for Manufacturability (DFM) analysis.
Self-Inspection
Comprehensive checks across all design facets (layout, wiring, thermal, etc.) using detailed checklists and strict quality systems.
Expert Review
Final review by senior engineers, encompassing design principles, DFM, Design for Testability (DFT), Signal Integrity (SI), Power Integrity (PI), and Electromagnetic Compatibility (EMC).
Quality Assurance
Medical Devices
Ultrasound, MRI, CT, IVD, temperature measurement, blood analysis, digital X-ray.
Communication Equipment
Switches, routers, 4G/5G equipment, network transmission, optical networks.
Aviation
Flight Control Computer (FCC), Inertial Navigation System (INS), Aeroengine Control Unit (ECU), Fuel Supply System, UAV Flight Control Mainboard.
Industrial Control
Industrial touch screen, frequency converter, servo driver, industrial sensor.
New Energy
PV Inverter, BMS, Charging Pile, Motor Controller.
Smart Home
Smart Gateway, Motion-sensor Light, Smart Lock, Robot Vacuum Cleaner, Smart Dishwasher.
Automobile
Vehicle-mounted Central Control Screen, Car Audio and Video System, Millimeter Wave Radar Control Board, Ultrasonic Radar.
Consumer Electronics
Smartphones, cameras, wearables, VR, IoT devices.
